Ball Valves

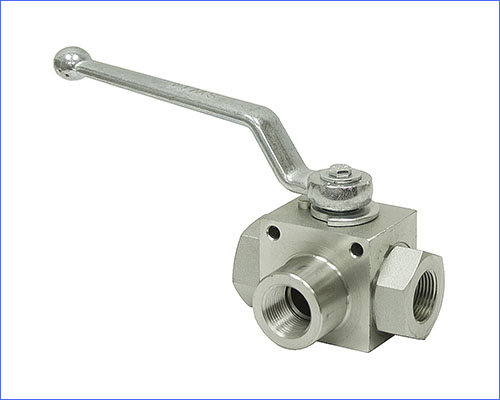

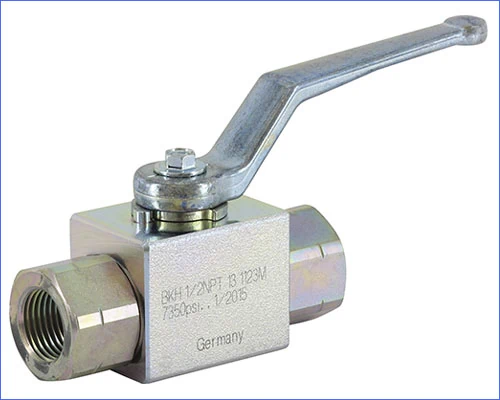

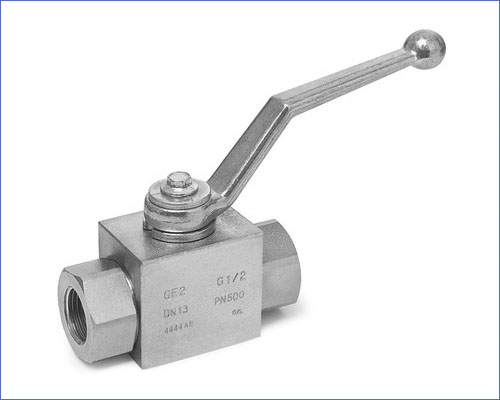

HIGH PRESSURE BALL VALVES
Hydraulic Sealing Solutions offers High Pressure Ball Valves to suit a wide range of applications including mobile plant and industrial equipment.
These valves should not be used as flow control valves and should therefore always be fully open or fully closed.
FEATURES
Full bore valves provide an unrestricted flow path for negligible pressure drop.
Floating ball on pre-compressed seals minimizes wear and provides an excellent seal at positive and negative pressures.
Operating temperatures from -20°C to +100°C.
Open to close in 1/4 turn (90°).
Cranked handles are incorporated to provide good clearance for the operator’s hands.
MATERIALS
- Body and port adaptors are Trivalent plated steel
- Handle – steel forging, Trivalent plated.
- Ball – carbon steel.
- SOCKET WELD FLANGES
- Ball seals – DELRIN (polyacetalic resin)
- Shaft seal – nitrile
APPLICATIONS
- Ideal for use in the chemical, pharmaceutical, off-shore, food, petrochemical , rock breaker pipe lines and process industries.
- A variety of special seals can be provided to comply with the stringent specifications required by these applications.
- Specially designed ball valve for Rock Breaker fluid lines.
PRODUCT DETAILS
- THREAD SIZE – ¼” – 2”.
- THREAD TYPE – BSP, NPT, DIN.
- OPERATING PRESSURE- UPTO 500 BAR.
- OPERATING TEMPERATURE – -20°C TO 100°C.
Quick Release Couplings
Hydraulic Sealing Solutions offers a variety of Quick Release Couplings to suit a wide range of applications including mobile plant and industrial equipment.

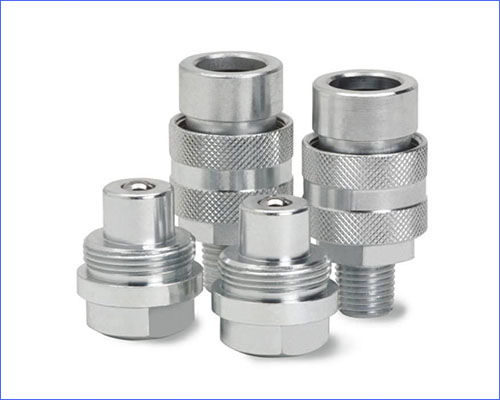

ISO A SERIES
ISO.A couplings are the ideal choice where a tough, durable product of superior quality is required.
They are perfectly suited to industrial and agricultural applications. A poppet valve is used to minimize the pressure drop characteristics and provide a positive sealing arrangement.
ISO A SERIES
Positive, quick connection ensured by the snap together locking ball system.
FWhen connected the male and female halves can rotate, even under pressure, thus avoiding any torsional stress in the flexible hoses.
Designed to withstand high pressure peaks and pulses.
Poppet valves have balanced springs and calibrated oil flow passages to minimize the pressure drop.
Poppet valve seals have shockproof protective edges
MATERIALS
Trivalent plated, heat treated carbon steel. Nitrile ‘O’ ring seals are fitted as standard. VITON seals are available on request.
APPLICATIONS
- Ideal for use in the chemical, pharmaceutical, off-shore, food, petrochemical , rock breaker pipe lines and process industries.
- A variety of special seals can be provided to comply with the stringent specifications required by these applications.
PRODUCT DETAILS
- THREAD SIZE – ¼” – 2”.
- THREAD TYPE – BSP, NPT, DIN.
- OPERATING PRESSURE- UPTO 350 BAR.

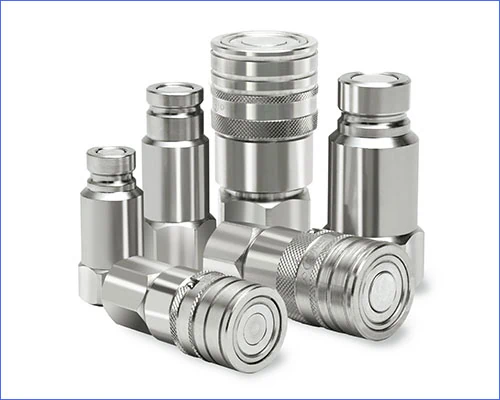

FLAT FACE/NON SPILL SERIES
Flat Face couplings are the ideal choice where a tough, durable product of superior quality is required. They are perfectly suited to industrial and agricultural applications.
Suitable for leak free performance in high pressure pulse, hammer circuits and many other applications.
FEATURES
Safety locking sleeve fitted as standard to prevent accidental disconnection
Flat faces are easily wiped clean
Allows for minimal inclusion of air and contaminants during connection
Flat face design prevents fluid loss during disconnection
Bidirectional flow
MATERIALS
Trivalent plated, heat treated carbon steel. Nitrile ‘O’ ring seals are fitted as standard. VITON seals are available on request.
APPLICATIONS
- Ideal for use in the chemical, pharmaceutical, off-shore, food, petrochemical , rock breaker pipe lines and process industries.
- A variety of special seals can be provided to comply with the stringent specifications required by these applications.
PRODUCT DETAILS
- THREAD SIZE – ¼” – 2”.
- THREAD TYPE – BSP, NPT, DIN.
- OPERATING PRESSURE- UPTO 400 BAR.
- OPERATING TEMPERATURE – -40°C TO 106°C (NITRILE SEAL).
- -20°C TO 200°C (VITON SEAL).
